Log cauldron
A boiler for half-meter and meter-long logs
-
Nominal heating power: 85 - 170 kW
-
Large bunker
-
Clean and efficient combustion of fuel
-
Extension kits are available
Log cauldron
85 - 170 kW
For half-meter and meter-long logs
With superior ease of use thanks to top charging
Suitable for various types of fuel
Logs, wood briquettes and sawdust or wood chips
Large capacity hopper
375 - 500 liters
Boiler efficiency
Up to 93.2%
Lambda probe control
Guarantees minimal emissions
Continuously adjustable air dampers
With optimization of heating and burnout
Accurate temperature stratification of the heating water buffer cylinder
With the help of the buffer cylinder control valve - prevents the violation of stratified layers during return
Adjustable return flow temperature increase unit
Fully assembled
Fully connected
For easy installation
Durable and stable display
Built into the boiler
Easy menu navigation
With context-sensitive help function
Built-in buffer charging control
Displaying all the necessary information
Resistance to foreign bodies
For example, nails, screws, etc.
Vitotrol 350-C remote control
The wood gasification boiler can also be controlled from the living area (optional)
Residual heat recovery
With an 8% increase in efficiency
Convenient control
Via the ViCare app on your smartphone

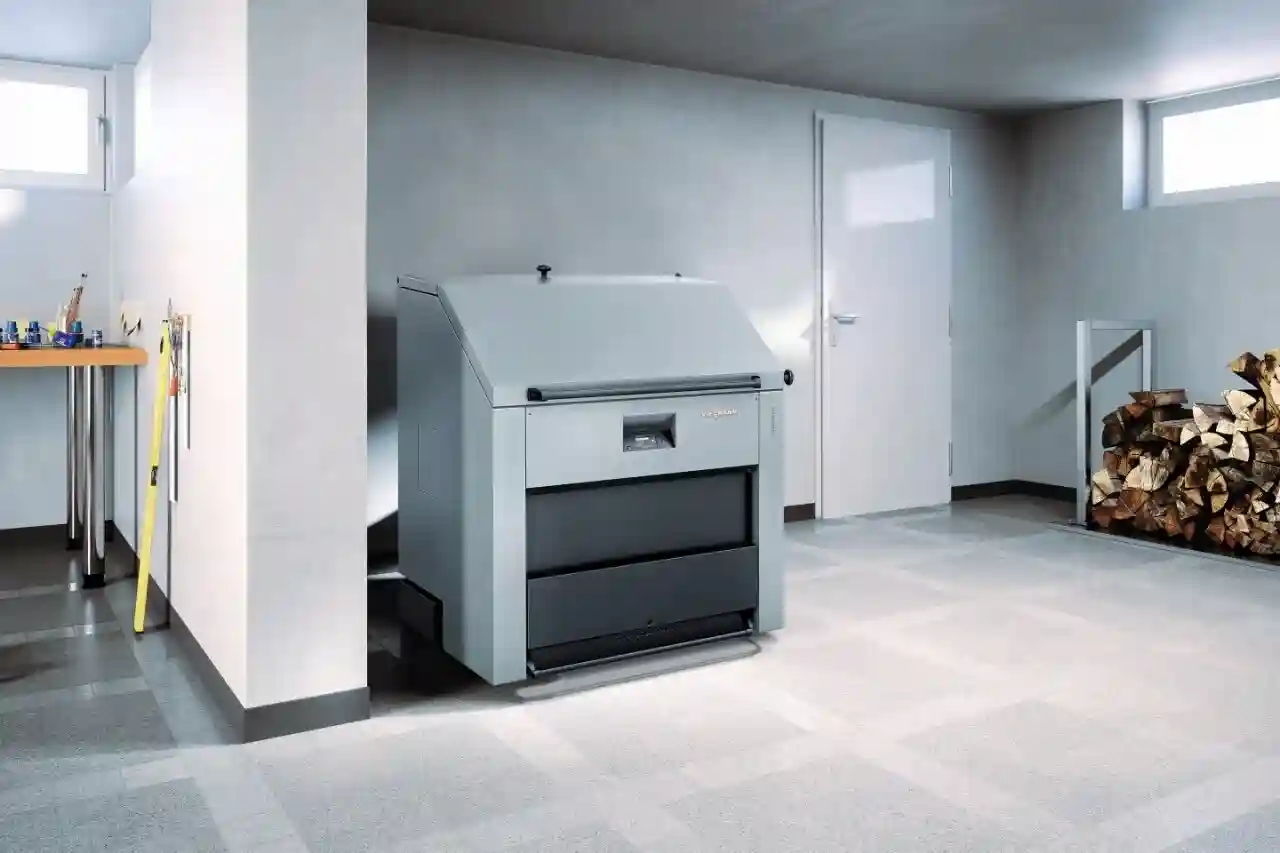

Vitoligno 250-S boiler:
Advanced combustion technology and excellent ease of use
The Vitoligno 250-S boiler was designed specifically for burning logs and features state-of-the-art combustion technology. This boiler has proven its effectiveness in thousands of applications.
Top charging ensures ease of operation, lambda probe control ensures low emissions, and an integrated heat management system ensures maximum convenience.
Features of the Vitoligno 250-S
Clean and efficient combustion
The microprocessor controller collects all the data necessary for operation and regulates heat distribution. This way, the boiler system is constantly monitored at all stages of operationâfrom warm-up and load operation to combustionâand maintained within the optimal operating range using motorized air dampers. This ensures clean and efficient fuel combustion.
Scope of application
Heat consumers or DHW cylinders can be connected to the control system using expansion kits (accessories). The Vitoligno 250-S is suitable for use in detached homes, multi-family buildings, agricultural applications, and commercial settings.
Large bunker
With its large loading chute, the Vitoligno 250-S offers exceptional convenience when heating, whether it’s logs, wood briquettes, or wood scraps, whether in chunks or loose wood shavings. The hopper is 1080 millimeters wide, allowing for easy loading of even logs up to one meter long.
Touch screen remote control
The Vitotrol 350-C touchscreen allows you to control your wood gasification boiler from the living area. With a five-inch, 16:9 display, operation couldn’t be simpler. The Vitotrol 350-C wall-mounted unit allows remote control of the boiler, offering all the necessary settings and displaying all the necessary information about the boiler and the heating water buffer tank.
The Vitotrol 350-C is more than just a remote control. It can also expand the system and integrate up to 20 additional control modules (heating circuits, DHW heating) into a single device.
Product details
| Exit |
85 – 170 kW. Type SH20 6/2015: output stages: 40.0; 50.0; 60.0; 75.0 kW |
|---|---|
| Permissible operating temperature |
Up to 95°C |
| Permissible working pressure |
3 bar (0.3 MPa) |
| Efficiency |
Up to 93.2% |
| Energy efficiency class |
A+ |
| Fuel |
Logs (half-meter and meter), wood briquettes and wood scraps, both in the form of pieces and in the form of loose sawdust |
| Scope of application |
Detached houses, semi-detached houses, new construction and modernization projects |
| Operation |
A robust, reliable display integrated into the boiler. Simple user prompts with context-sensitive help. Vitotrol 350-C remote control (optional). Convenient smartphone control with the Viessmann app. |
| Hot water heating |
Additional DHW cylinder(s) required for high DHW convenience |
| Additional features |
Resistance to foreign bodies (nails, screws, etc.). |
| Section of the product |
|
