Wood gasification boiler
A wood gasification boiler for burning logs. An ideal complement to oil and gas heating systems.
-
Nominal heating power: 17 - 45 kW
-
Heats up in just a few minutes
-
An ideal complement to oil and gas heating systems
-
Long recharge intervals and burn-out times
Your local Viessmann sales partner will provide you with individual advice.
Simple and intuitive operation of the control unit
With display backlight
Software update function
Via SD card
Low dust emissions
Thanks to clean and efficient fuel combustion
Highest operational reliability
Thanks to the flue gas fan with adjustable speed and function control
Easily accessible service holes
For easy ash removal and front cleaning
Energy efficiency class
Energy efficiency class: A+
Eligible for subsidies
Through the Federal Financing of Energy-Efficient Buildings covering individual measures (BEG EM)

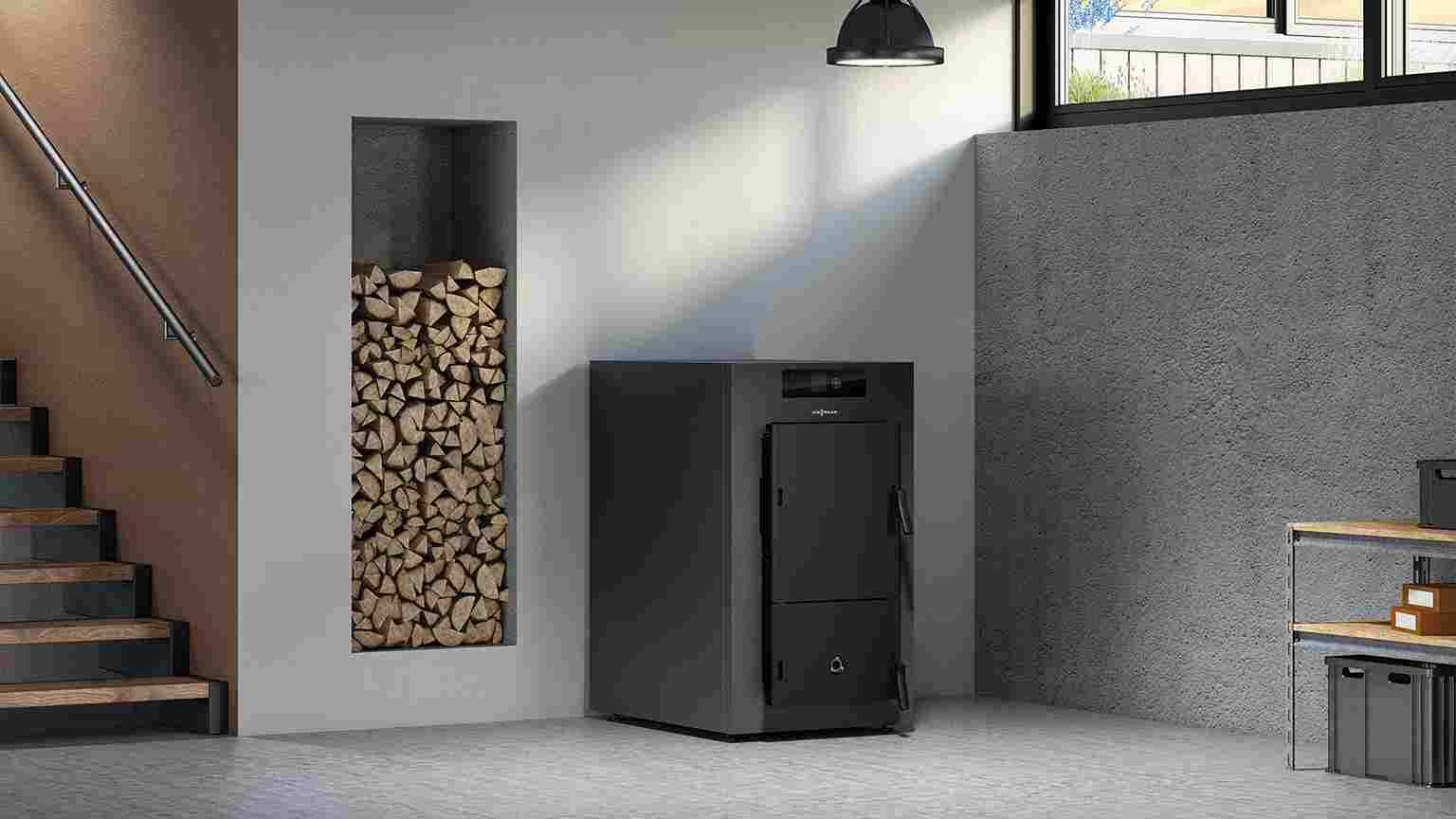

Vitoligno 150-S log gasification boiler
The Vitoligno 150-S is a very attractively priced log-fired gasification boiler with a rated heating output of 17 to 45 kW. It is suitable for both dual operation (operating with an existing heating system) and single operation (as the only boiler) in detached houses and apartment buildings.
The Vitoligno 150-S is modulated to continuously adjust its output to current heat demand. A combustion controller with a lambda probe and flue gas temperature sensor records the oxygen content and flue gas temperature. It ensures low emissions and high efficiency of up to 93.1 percent. This allows the Vitoligno 150-S to extract useful heat from logs in a highly economical manner.
Integrated Viessmann solution portfolio for Vitoligno 150-S
Value-added services, digital services, connectivity and platforms
Connection inside
Connectivity Inside is an integrated WiFi interface for system control and maintenance using Viessmann applications.
Features of the Vitoligno 150-S wood gasification boiler
This compact wood gasification boiler is also an excellent addition to an existing oil or gas heating system. Operating in dual mode, it becomes the primary supplier of heat and hot water for domestic use. A traditional boiler is only used to cover peak loads when temperatures drop to extremely low levels.
The Vitoligno 150-S is modulated to continuously adjust its output to current heat demand. A combustion controller with a lambda probe and flue gas temperature sensor records the oxygen content and flue gas temperature. It ensures low emissions and high efficiency of up to 93.1 percent. This allows the Vitoligno 150-S to extract useful heat from logs in a highly economical manner.
The heating process is accelerated by a damper, and it takes less than three minutes for the logs to ignite and begin burning.
The large hopper ensures long intervals between refills and burnout. The Vitoligno 150-S can be loaded with logs up to 56 cm long. Extracting the carbonization gas ensures smoke-free loading.
The heating surfaces are easily cleaned from the side using a lever. Thanks to gasification technology and lambda probe combustion control, the Vitoligno 150-S achieves high efficiency and clean, effective combustion with very low dust levels. The door can be opened from either side, ensuring optimal space utilization and allowing it to be positioned in a corner of the room for installation.
Viessmann offers a comprehensive range of wood heating products. Choosing the Vitoligno 150-S wood-fired boiler is both economical and environmentally responsible. Significant independence from oil and gas, as well as cost savings through economical energy consumption, are additional significant advantages. Furthermore, investments are supported by attractive subsidiesâfor example, for heating system modernizationâthrough the Federal Funding for Energy-Efficient Buildings (BEG EM), which covers selected measures. The Vitoligno 150-S is available in the following outputs: 17, 23, 30, 34.9, and 45 kW.
Video: Vitoligno 150-S
The Ecotronic 100 digital control unit is clear and intuitive
The Ecotronic 100 control unit is remarkably simple and intuitive. All information is displayed using symbols on the backlit display. The heating water buffer tank’s heating status is also shown on the screen as a graphic indicator.
Product details
| Exit |
From 17 to 45 kW. Type V15A 3/2017: output stages: 17.0; 23.0; 30.0; 34.9; 45.0 kW |
|---|---|
| Permissible operating temperature |
Up to 90 °C |
| Permissible working pressure |
3 bar (0.3 MPa) |
| Efficiency |
Up to 93.1% |
| Energy efficiency class |
A+ |
| Fuel |
Logs up to 56 cm long |
| Scope of application |
Detached houses, semi-detached houses, new construction and modernization projects |
| Operation |
Ecotronic 100 digital control unit with backlit display |
| Hot water heating |
To ensure a high level of convenience in hot water supply, an additional multi-mode buffer tank for heating water is required. |
| Additional features |
Large hopper provides long intervals between refills and a burn time of up to 4.5 hours; semi-automatic cleaning of heat exchanger tubes using a lever |
| Section of the product |
|
