Vitosol 200-TM
Vacuum Tube Manifold
ThermProtect high-efficiency vacuum tube manifold with automatic temperature-dependent shut-off
-
How a heat pipe works
-
Long service life
-
ThermProtect
-
Overheat Protection
How a heat pipe works
Vacuum tube manifolds based on the heat pipe principle
ThermProtect
ThermProtect Temperature-Dependent Automatic Shut-Off for High Operational Reliability
Long service life of the whole system
Thanks to temperature-dependent shutdown in case of stagnation in the summer
Overheat Protection
In case of prolonged exposure to sunlight
Dry Connection
No direct contact between the fluid and the coolant, allowing for easy tube replacement when the system is full
Less space required
Compared to flat plate manifolds due to greater efficiency
Consistently high performance
No risk of absorbent contamination
High level of solar coverage
Therefore, it is suitable for central heating backup
Installation of a flat roof
Designed for horizontal installation on flat roofs and larger systems
Less shading
When installed horizontally on a flat roof due to the greater distance between the pipes
Can be rotated up to +/- 45 degrees
The absorber can be rotated up to +/- 45 degrees
Low maintenance cost
Thanks to the longer service life of solar panel components and pumps thanks to ThermProtect
Lower static load
By reducing the need for ballast in horizontal installations
Vitosol 200-TM Vacuum Tube Manifold
The Vitosol 200-TM vacuum tube collector has been specially developed for horizontal installation in large systems on flat roofs and for apartment buildings. The absorbers can be rotated 45 degrees to best reflect the path of the sun without additional shading.
Operational reliability with ThermProtect
ThermProtect’s new temperature-dependent automatic shut-off function prevents overheating in the absence of heat dissipation and high insolation levels. Vitosol 200-TM is therefore also suitable for buildings that are not used all year round, such as schools.
Maximum heat transfer
The manifold works on the principle of a heat pipe, where the heat transfer fluid does not pass directly through the tubes. Instead, the working medium evaporates inside the heat pipe and transfers heat through the condensate to the heat transfer fluid through a copper heat exchanger. This method guarantees maximum and optimal heat transfer, as well as excellent performance and service performance.
Fast, easy and safe installation
The manifold housing does not need to be opened when inserting the pipes. Locking caps in the support bar prevent the tubes from slipping. If maintenance is required, the tubes can be replaced quickly, economically and easily thanks to their dry connection without the need to drain the water from the system.
Integrated range of solutions for Vitosol 200-TM
Benefit from value-added and digital services from Viessmann's integrated range of solutions.
Viessmann Heat
Viessmann Wärme is our heating system rental service - ideal for those who want to enjoy superb heating comfort without having to buy a boiler.
Funding professional
The Viessmann FÃļrderProfi service streamlines and simplifies the entire subsidy process, from application to payment.
For long manifold life.
Product details
| Gross Area |
|
|---|---|
| Collector Type |
|
| Design |
|
| Applications |
|
| Installation Type |
|
| Additional features |
|

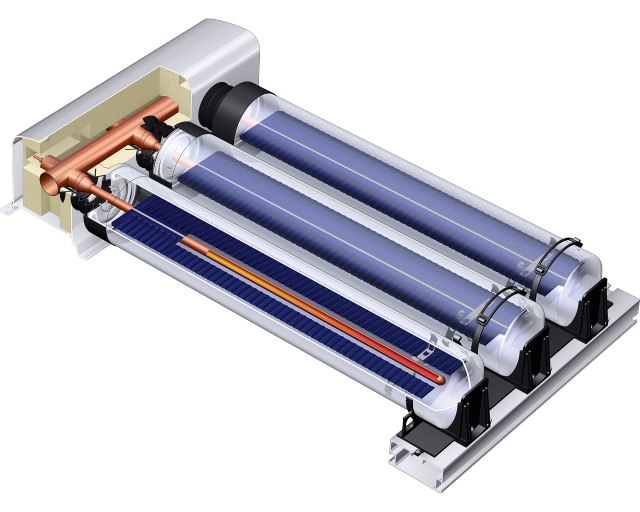

| Product cross-section |
|
