Vitosol 200-FM

Get free, one-on-one, no-obligation advice from our qualified channel partners!

Find a Trading Partner Now

ThermProtect absorbent layer

Vitosol 100-FM high-efficiency flat plate collector with switchable ThermProtect absorbent layer

Attractive design

Customised frame paint in any RAL colour

Universal installation

For overhead mounting, flat roof mounting, roof integration or façade mounting; horizontal or vertical

High level of solar coverage

For backup central heating and hot water heating

No overheating

At high outdoor temperatures or with low heat dissipation

Constant tightness

Thanks to the frame around the perimeter and seamless fastening of the glass

Fast and reliable connection

Through flexible, corrugated, pressure connectors made of stainless steel

Vitosol 200-FM Solar Collector: Highly efficient flat plate collector with ThermProtect absorbent layer

The high-performance Vitosol 200-FM flat plate collectors are the perfect addition to any heating system. With an individual absorber area of 2.3 m², solar collectors can be efficiently adapted to any energy demand.

On average, they can replace up to 60 percent of the energy that would otherwise be required annually to heat the DHW and contribute to backup central heating. When used in conjunction with a condensing boiler, free solar energy can help you reduce your annual energy consumption for heating and hot water by more than a third.

Find out more about the Vitosol series

Integrated range of solutions for Vitosol 200-FM

Benefit from value-added and digital services from Viessmann's integrated range of solutions.

Viessmann Heat

Viessmann Wärme is our heating system rental service - ideal for those who want to enjoy superb heating comfort without having to buy a boiler.

Funding professional

The Viessmann FörderProfi service streamlines and simplifies the entire subsidy process, from application to payment.

Features of Vitosol 200-FM

ThermProtect prevents overheating

An intelligent absorbent layer protects the manifolds from overheating. Viessmann’s patented ThermProtect technology prevents further energy absorption after a certain temperature has been reached, when the solar cylinder is fully heated.

ThermProtect also results in a higher performance of Vitosol 200-FM compared to conventional flat plate manifolds, as a wider choice of sizes is possible.

The manifold is permanently sealed and well insulated

The aluminum frame folded around the perimeter and seamless fastening of the panels ensure constant tightness and high stability of the solar collector. The back panel is puncture and corrosion resistant. Highly efficient thermal insulation reduces heat loss, especially in spring, autumn and winter.

Vitosol 200-FM is particularly easy to install

ntegrated supply and return pipes allow even large collector arrays to be safely installed using flexible corrugated stainless steel connectors. Up to twelve solar collectors can be easily connected together.

Flat plate collectors can be used universally for installation above the roof, integration into the roof and installation on collector supports, e.g. on flat roofs. The easy-to-install Viessmann fastening system consists of load-tested and corrosion-resistant stainless steel and aluminium components.

Attractive views on any roof

Vitosol 200-FM is the right choice if the solar collector is to have a custom RAL color frame. As standard, it has a dark blue color and can be combined with almost any roof. The Vitosol 200-FM variants, SV2G type (vertical) or SH2G type (horizontal), can be selected for seamless roof integration as they are virtually flush with the roof cladding when installed.

Vitosol 200-FM Solar Collector Video

The Viessmann Vitosol 100-FM/200-FM and Vitosol 200-TM/300-TM solar collectors are equipped with the innovative ThermProtect overheating protection system. This video explains how it works and what happens.

All Viessmann solar collectors are now equipped with the innovative ThermProtect overheating protection system.

Product details

Gross Area	2.51 m² (SV2F/SH2F), 2.56 m² (SV2G/SH2G)
Absorber area	2.32 m²
Collector Type	Flat plate manifold
Design	Dark blue frame. On request, the frame can be made in any other RAL color.
Applications	Residential buildings, commercial enterprises, premises of local authorities, new construction and modernization projects.
Installation Type	Flat plate collector for vertical (type SV2F) or horizontal (type SH2F) installation on flat and pitched roofs; type SV2G (vertical) and SH2G (horizontal) for roof integration.
Additional features	For heating hot water, heating water and pool water via a heat exchanger

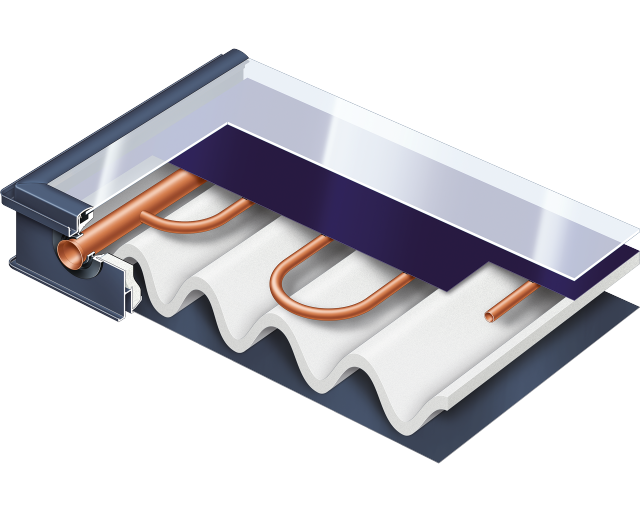

Product cross-section
