Vitocal 350-HT Pro

Vitocal 350-HT Pro

Large heat pump

High-temperature brine/water heat pump with water/water capability with intermediate brine circuit.

Rated heat output: 56.6 - 351.5 kW
Flow temperature up to 90 °C
Low operating costs with maximum efficiency
Sustainable, future-proof refrigerant

Get free, one-on-one, no-obligation advice from our qualified channel partners!

Rated Heating Power for Brine/Water Handling

56.6 - 144.9 kW (B0/W35)

Rated heating power for water/water operation

133.3 - 351.5 kW (W45/W90)

Maximum flow temperature up to 90 °C

Specially designed to recover waste heat into renewable heat for the commercial sector

Low operating costs with maximum efficiency

Thanks to the innovative refrigerant cycle diagnostics system with electronic expansion valve

High stability thanks to future-proof refrigerant

HFO R1234ze refrigerant with a global warming potential (GWP) of 7

Remote Monitoring and Communication

Thanks to numerous data transfer options

Optimal use of waste heat

Due to the high permissible temperature of the primary source up to 45 °C

Low sound power

< 66 dB(A)

Intuitive operation of the PLC control unit

Using the touch screen and schematic diagrams

Rated pressure 10 bar

For industrial applications

Low maintenance cost

Thanks to automatic leak monitoring

Easy commissioning

With the help of the assistant functions controlled through the menu

Factory Test at Operating Temperature

With functional and performance tests

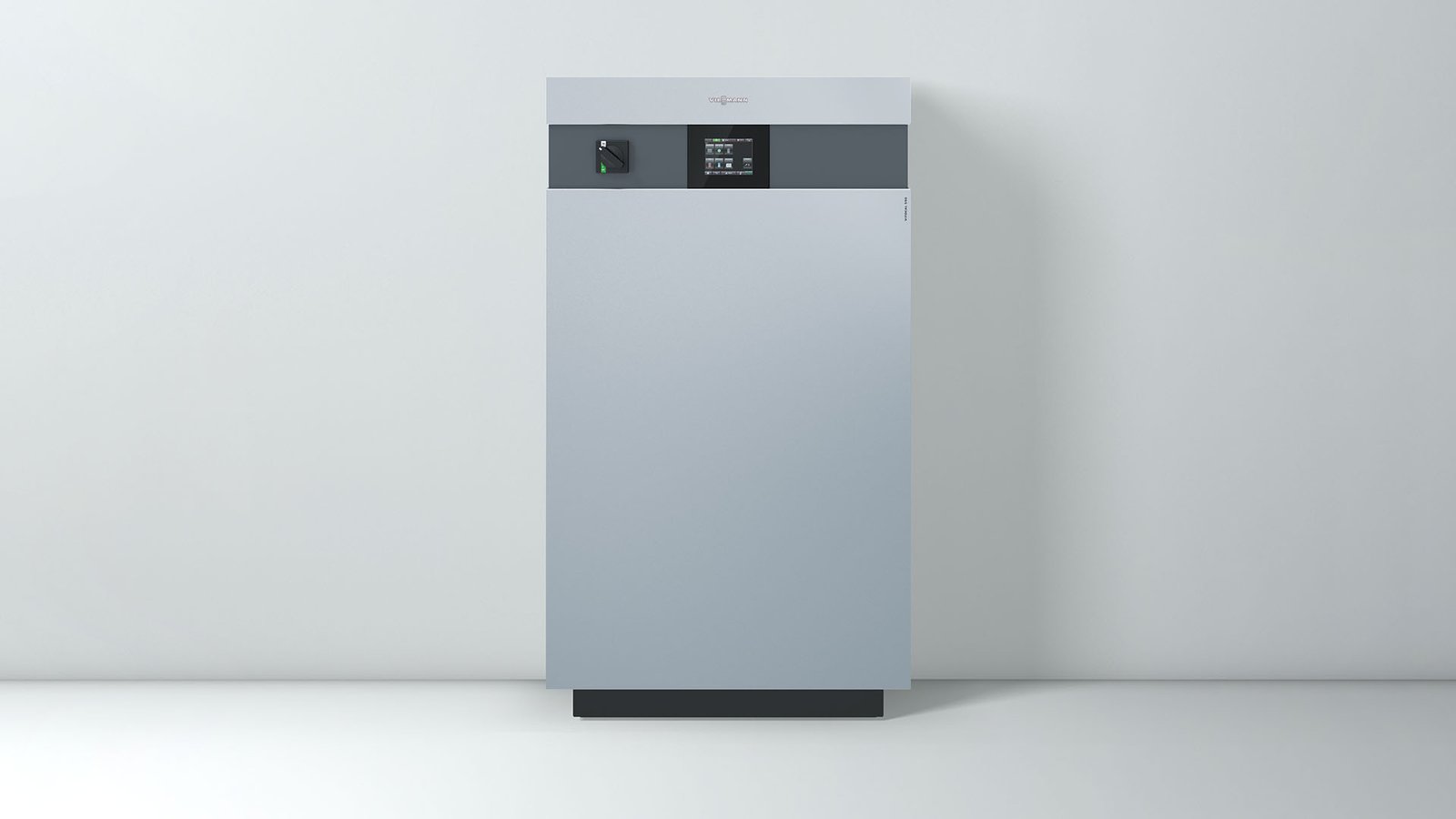

Vitocal 350-HT Pro Large Brine/Water Heat Pump

Vitocal 350-HT: High Temperature Heat Pump for Waste Heat Recovery in Renewable Heating for the Commercial Sector

The use of renewable heat in commercial applications is driven by the need for high flow temperatures.

As a series-produced heat pump, the Vitocal 350-HT Pro high-temperature heat pump delivers a flow temperature of up to 90 °C and uses a heat source temperature of up to 45 °C. This makes it particularly suitable for waste heat recovery and high temperatures for industrial and commercial processes or for older district heating networks.

The use of the new HFO refrigerant R1234ze means that this series of appliances already complies with refrigerant regulations that will remain in place for many years to come. GWP (Global Warming Potential) is in the single-digit range and is therefore almost as low as that of natural refrigerants.

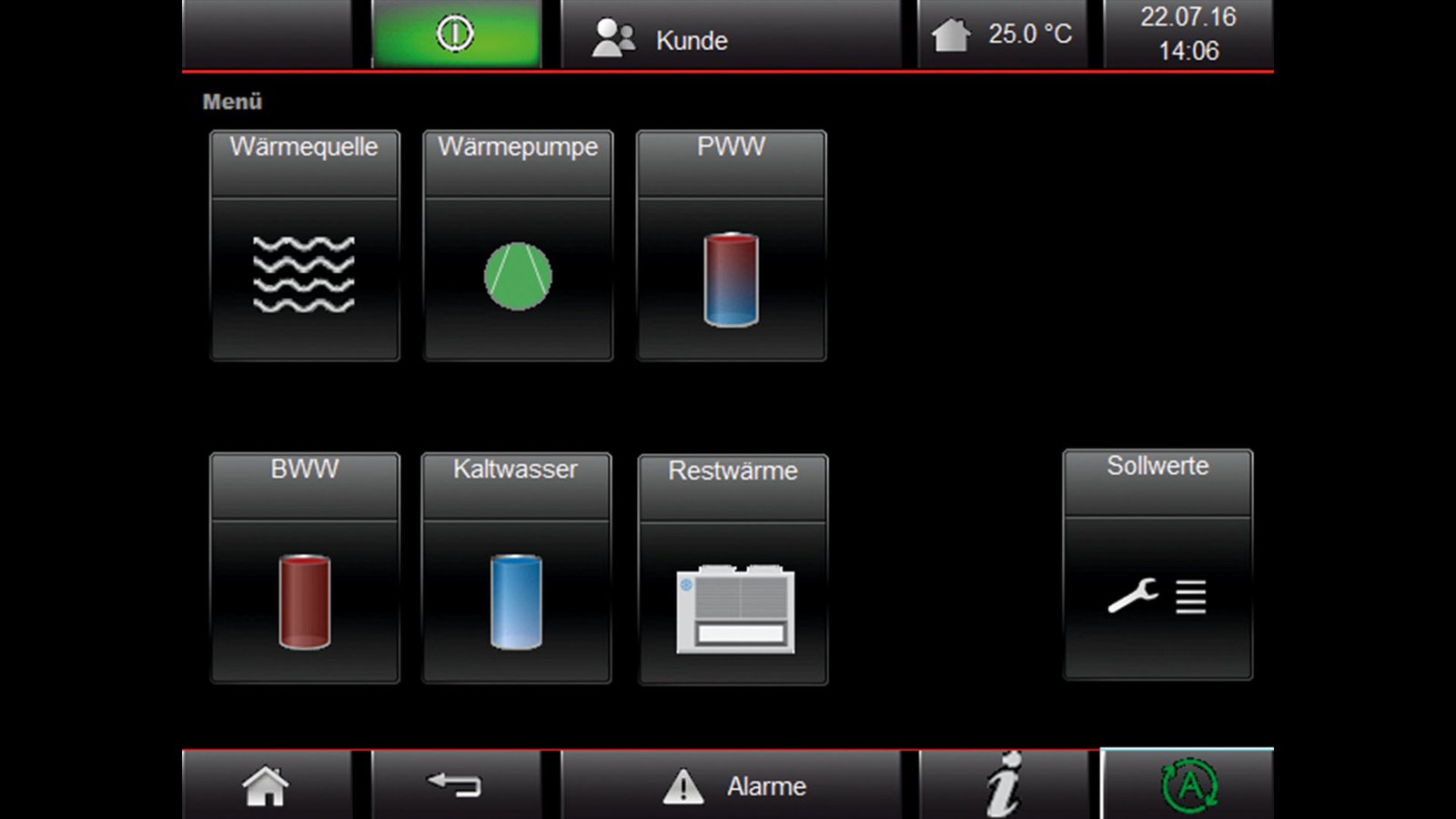

In addition, the control unit has many communication options. LAN-enabled systems as well as Modbus and BACnet interfaces can be used. This makes the system available for remote monitoring and integration into building management systems. The 5.7-inch color touchscreen provides intuitive operation and easy control.

Product details

Rated heat output (kW), according to EN 14511, B0/W35, spread 5 K	Type BW 353.AHT058: 56.6 kW \| type BW 353.AHT071: 72.4 kW \| Type BW 353.AHT084: 83.2 kW \| Type BW 353.AHT096: 96.6 kW \| type BW 353.AHT119: 116.8 kW \| Type BW 353.AHT126: 124.8 kW \| type BW 353.AHT147: 144.9 kW
Rated heat output (kW) according to EN 14511, W45/W90, spread 10 K	Type BW 353.AHT058: 133.3 kW \| Type BW 353.AHT071: 174.7 kW \| type BW 353.AHT084: 202.2 kW \| type BW 353.AHT096: 234.4 kW \| type BW 353.AHT119: 262.8 kW \| type BW 353.AHT126: 303.3 kW \| type BW 353.AHT147: 351.5 kW
ε Efficiency Ratio (COP) B0/W35	Type BW 353.AHT058: 4.3 \| Type BW 353.AHT071: 4.3 \| Type BW 353.AHT084: 4.2 \| Type BW 353.AHT096: 4.2 \| Type BW 353.AHT119: 4.1 \| Type BW 353.AHT126: 4.2 \| Type BW 353.AHT147: 4.2
ε Capacity Factor (COP) for Water/Water Operation with W10/W35 Intermediate Brine Circuit	Type BW 353.AHT058: 3.2 \| Type BW 353.AHT071: 3.2 \| Type BW 353.AHT084: 3.2 \| Type BW 353.AHT096: 3.2 \| Type BW 353.AHT119: 3.2 \| Type BW 353.AHT126: 3.2 \| Type BW 353.AHT147: 3.2
Applications	Commercial Enterprises, Industrial Facilities, Local Government Premises, Modernization Projects, New Construction
Surgery	Vitotronic 200 PLC 2.0 control unit with large colour touch screen
Product cross-section

ServiceConnect Commercial

The innovative service concept gives Viessmann’s sales partners an additional advantage when working with commercial customers and local authorities thanks to full service from a distance.
