Vitocal 250-A

Environmentally Responsible Heat Pumps – Find out more about the different options and benefits!

Rated heating power

2.6 - 13.4 kW

Well suited for retrofits

With a flow temperature of 70 °C (at an outside temperature down to -10 °C)

Climate Protection+++: Protects the environment and climate

Environmentally friendly, natural refrigerant R290 (propane) with a particularly low GWP100 (global warming potential) of 0.02

OptiPerform

Reliable performance with high efficiency

Link to the service

Guaranteed faster response time when a service is needed

Especially quiet

Silent Operation (Super Quiet)

Cooling function

Heating and cooling in one

Low operating costs due to high efficiency

COP (Efficiency Factor) according to EN 14511: up to 5.3 (at A7/W35)

60% less space required

Compared to similar models

Integrated Energy Management System

Provides visibility into energy consumption and costs

ViCare App

For ease of operation

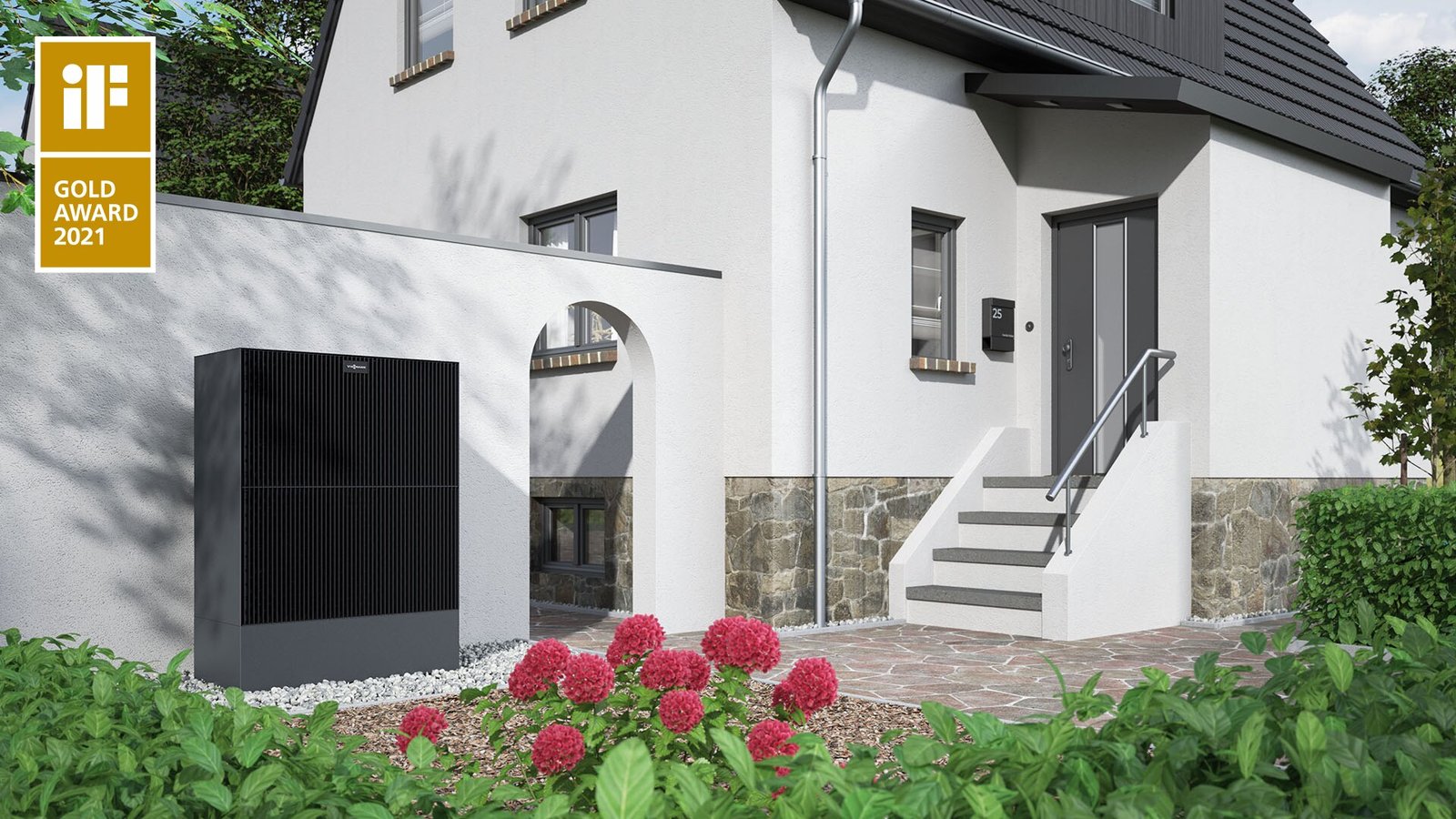

Vitocal 250-A heat pump used in modernized old building

Well suited for retrofitting: Vitocal 250-A

A new generation of heat pumps

Reliable, compact and more environmentally responsible than ever – the new innovative heat pump technology from Viessmann makes it possible to use environmental energy for heating and cooling particularly efficiently. Vitocal 250-A with a flow temperature of up to 70 °C has been specially developed for retrofit projects. Existing radiators can continue to be used. Underfloor heating is not necessary. High energy efficiency, convenient operation via app, stable operation and attractive design are all convincing characteristics.

Viessmann's integrated range of solutions for Vitocal 250-A

Value-Added Services, Digital Services, Connectivity and Platforms

Viessmann Heat

Viessmann Wärme is our heating system rental service - ideal for those who want to enjoy superb heating comfort without having to buy a boiler.

ViShare

Smart electricity tariffs for your home. Flexible, environmentally friendly and 100% renewable. The electricity tariffs are set by Energy Market Solutions GmbH (EMS), a contractual partner of the ViShare Energy Community and a subsidiary of the Viessmann Group.

Funding professional

The Viessmann FörderProfi service streamlines and simplifies the entire subsidy process, from application to payment.

The ViCare app

The ViCare app provides intuitive heating control. Green for go - the user can see at a glance in the app whether their heating system is working as it should.

The ViGuide app

ViGuide is an application for sales partners. It has numerous functions for monitoring and managing systems in both detached and multi-family houses, as well as providing quick access to the technical service.

Connection inside

Connectivity Inside is an integrated WiFi interface for system control and maintenance using Viessmann applications.

wibutler

wibutler is a manufacturer-independent smart home control centre that connects products from different manufacturers and enables their control and automation through apps.

Advantages of Vitocal 250-A

Climate Protect+++
OptiPerform
Service Link
Super Silent

Climate Protect+++ protects the environment and the climate

The new heat pumps in the Vitocal 25x series use the “green” refrigerant R290 (propane), which is considered particularly environmentally responsible due to its very low GWP100 (Global Warming Potential) of 0.02.

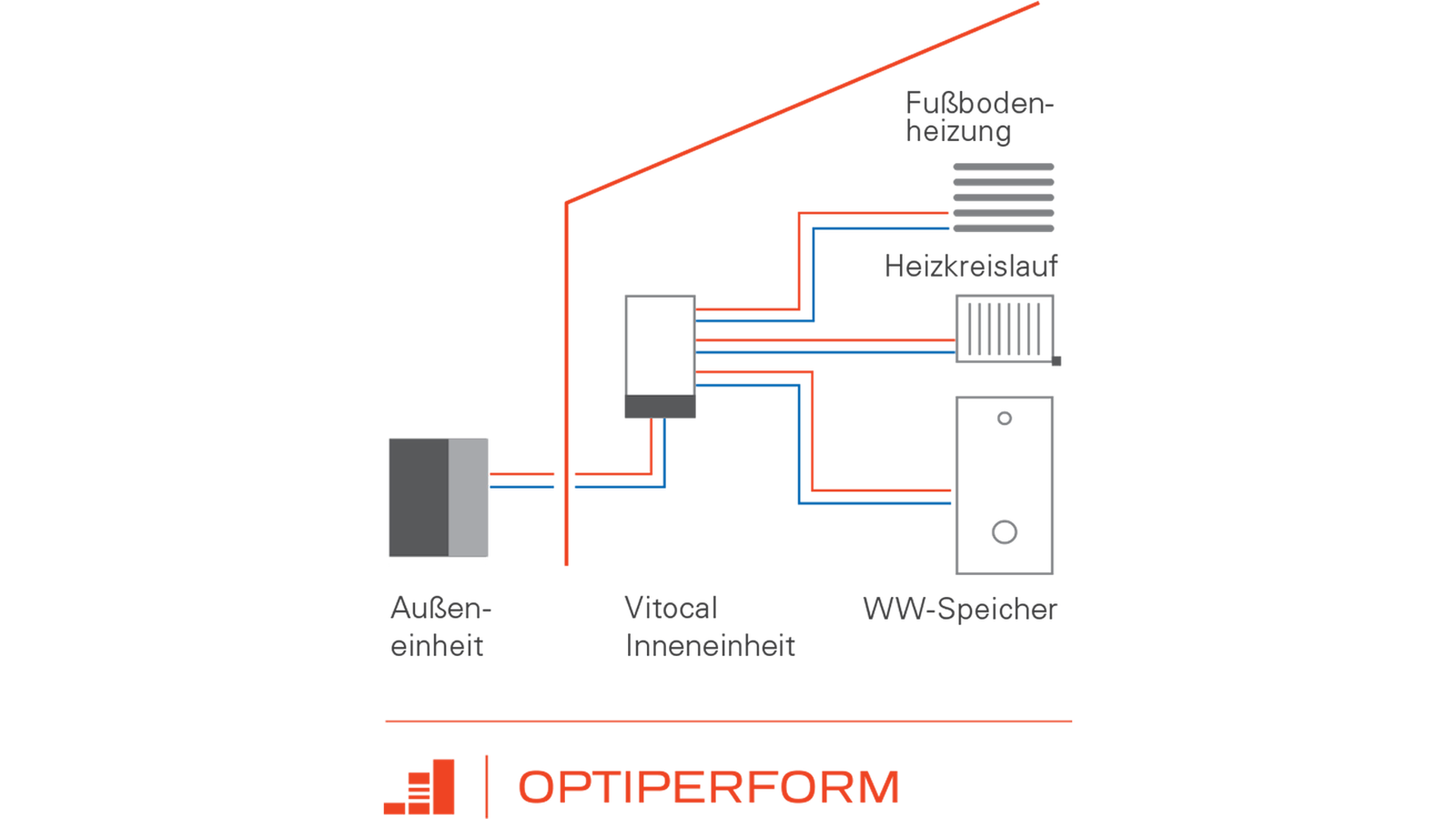

OptiPerform – reliable performance with maximum efficiency

Viessmann’s advanced heat pumps work with a patented hydraulic system. Thanks to the Hydro AutoControl® system, the heat pump operates reliably and with maximum efficiency over its entire service life. The unique design not only ensures that your contractor can install a heat pump with OptiPerform much faster and therefore more cost-effective. It also takes up much less space, as it is 60 percent smaller than similar systems.

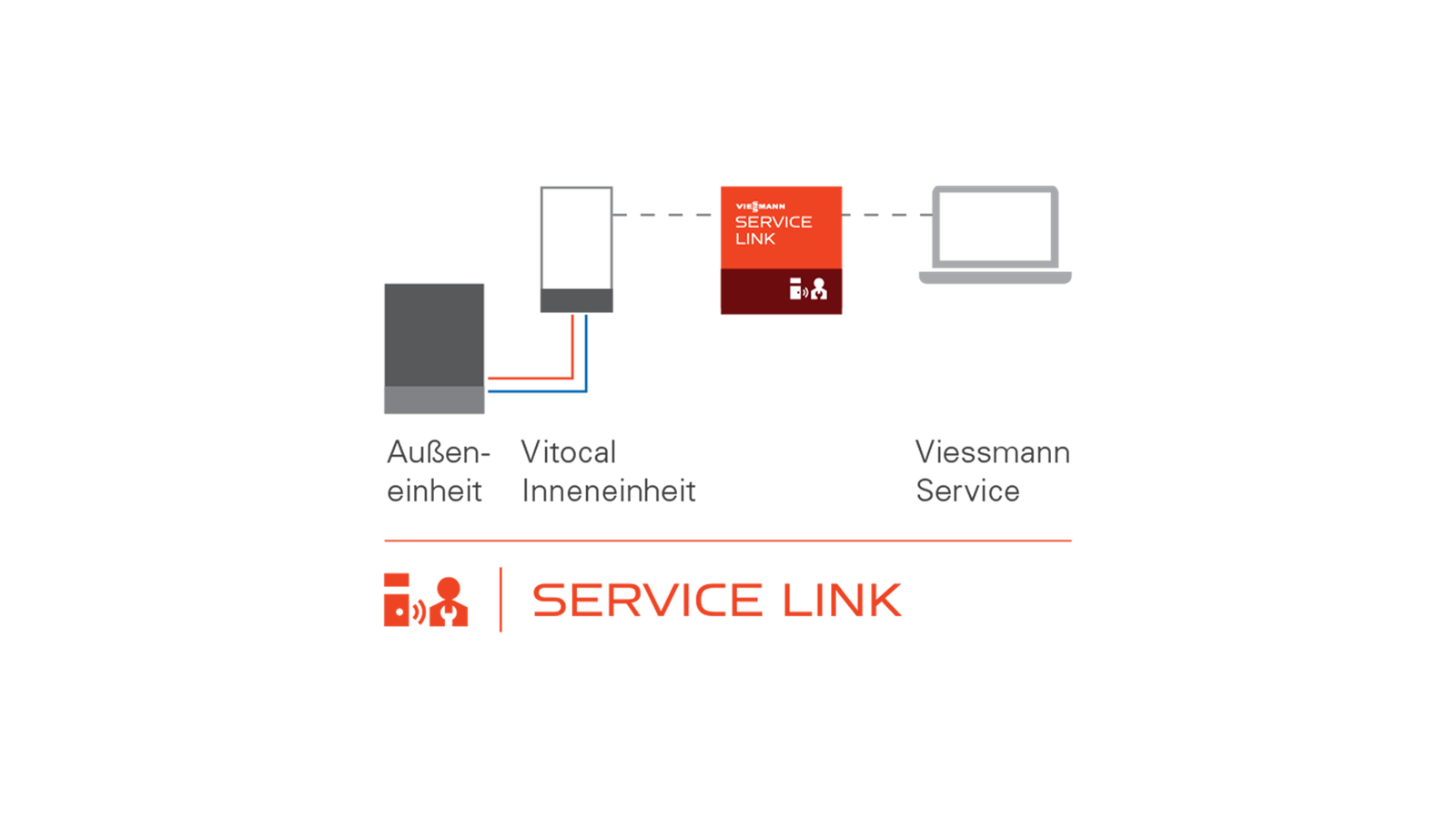

Service link – fast response time for the service team

Service-coupled heat pumps use wireless technology to automatically notify the trading partner of possible faults. Completely free. This eliminates unnecessary travel as on-site service is faster. Save time and money.

Super Quiet – Quiet Whispers When Operating At Full And Part Load

Viessmann heat pumps are among the quietest of their kind thanks to their advanced acoustic design+ and feature a sound-optimised fan. In combination with intelligent speed control, it significantly reduces the noise level in the air at both full and partial load. As a result, the outdoor unit can be installed even in areas of dense development, for example, in terraced houses or near the border of the site.

One system for everything: Viessmann One Base

Viessmann One Base integrates any smart home solutions you already use, seamlessly and wirelessly. It can be easily expanded, for example, with the help of a wall unit for charging an electric car. As members of the ViShare energy community, users can easily track their rational use of electricity and heat via the Viessmann One Base. The operator and contractual partner of the ViShare energy community is Energy Market Solutions GmbH (EMS), a subsidiary of the Viessmann Group.

Viessmann One Base is compatible with all additional digital services. Integrated services and devices can be easily controlled using voice assistants such as Amazon Alexa and Google Assistant. The new platform is the basis for an expandable and future-proof energy system in every home.

Always in good hands

Only the free ViCare app is required to contact Viessmann One Base; the Viessmann integrated energy management system does the rest. The Viessmann One Base is quick and easy to operate via the app. The contractor can also remotely monitor the system and immediately eliminate possible violations using electronic means. This eliminates unnecessary travel and meetings with a trading partner.

Viessmann One Base makes the home more comfortable, efficient and future-proof.

Comfort at the touch of a finger: easy and convenient control of the power system from anywhere.

All Viessmann systems and smart home solutions on one platform

With the Viessmann One Base, the entire energy system is controlled via a single app – simply, reliably and quickly. The new platform combines all devices and electronic applications in the home into a single climate and energy solution. With beneficial consequences: less energy consumption, a lower carbon footprint and always up-to-date information on current costs. Viessmann One Base makes your own four walls fit for a climate-friendly future!

Record-keeping with the ViCare App

With the energy cabin in the ViCare app, users can monitor all energy flows in their home. The analysis tool shows the current and past levels of self-sufficiency and self-consumption.

Viessmann One Base – many advantages at a glance

Convenience: Power system control via APP. If necessary, it can be linked to other devices and services, such as Amazon Alexa, Apple HomeKit, Google Assistant, etc.
Efficiency: The platform links and optimizes energy flows for particularly efficient and therefore economical operation.
Certainty: The contractor is automatically notified of any violations and can take corrective action online before the situation gets out of hand.
Sustainability: Long-term integration of all necessary digital services, modernization and expansion of products, e.g. photovoltaic systems with an energy storage unit and a wallbox for e-mobility.

Product details

Rated heat output (kW), operating point A7/W35 (according to EN 14511)	Type 251.A10: 7.3 kW \| Type 251.A13: 8.1 kW
ε Efficiency Ratio (COP) A7/W35	Type 251.A10: 5.3 \| Type 251.A13: 5.2
Energy efficiency ƞs*	Energy efficiency ƞs at W35 in %: Type 251.A10: 197 \| Type 251.A13: 181 *Heating performance data in accordance with Commission Regulation (EU) No 813/2013 under medium climatic conditions for low temperature applications (W35) and medium temperature applications (W55)
Energy efficiency class, hot water heating	–
Applications	Detached houses, modernization projects
Surgery	Heat pump control unit with 7″ color touch screen, can be controlled via the ViCare app
Hot water heating	An additional DHW cylinder is required, which provides a high level of DHW convenience.
Additional features	For space heating/cooling and hot water heating \| Maximum Flow Temperature: 70°C (Outside Temperature down to -10°C) \| Monobloc Indoor Unit with Heat Pump Control Unit, High Efficiency Secondary Circulation Pump, 4/3-Way Valve, Safety Assembly \| Built-in instant water heater \| Built-in buffer tank for heating water and overflow valve
Indoor unit product cross-section with one integrated heating/cooling circuit

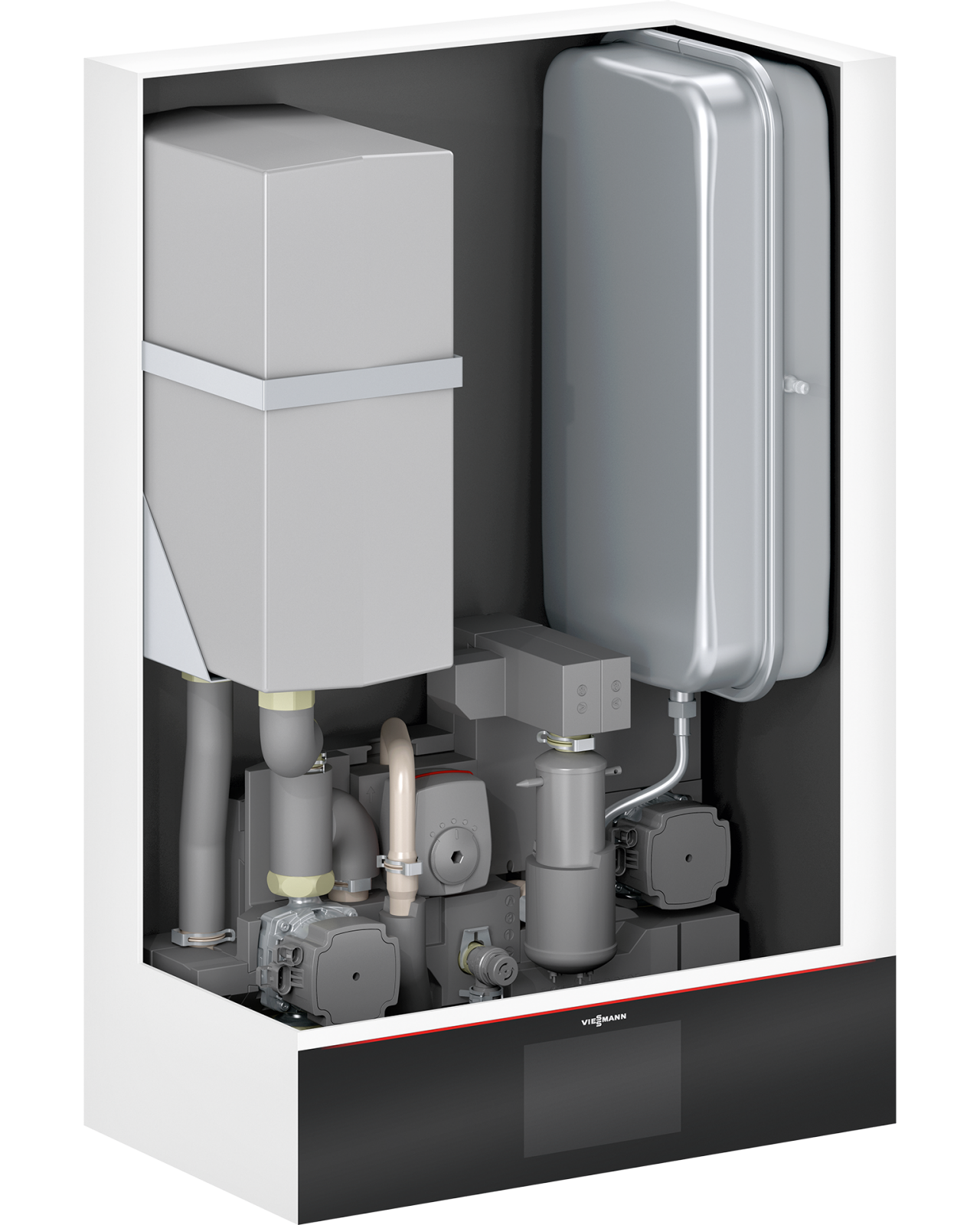

Section of the indoor unit with two built-in heating/cooling circuits
Cross-section of the product, outdoor unit
