Vitocrossal 300 type CRU

Gas Condensing Boiler

The latest gas condensing unit Vitocrossal 300 sets new standards with the MatriX-Disk burner and Inox-Crossal heat exchangers

Rated heat output: 800-1000 kW
MatriX Disc Burner
Cascade function for 8 boilers
High operational reliability and long service life

Your local Viessmann sales partner will provide you with individual advice

Gas Condensing Boiler

800 and 1000 kW

Standard Seasonal Efficiency [DIN]

Up to 98% (Hs) [gross cv].

Suitable for various types of gas

Gas types E and LPG

High operational reliability and long service life

Thanks to the corrosion-resistant Inox-Crossal stainless steel heat exchanger

High-efficiency heat transfer

And high condensing rate

Self-cleaning effect

Thanks to the smooth stainless steel surface

MatriX Disc Burner

For particularly quiet and environmentally friendly operation with modulation range up to 1:6

Working with an open chimney and a sealed room

Selectable as needed

Takes up little space

Thanks to the shortened combustion chamber and compact heat exchanger module

Long burner run time

Due to the wide modulation range and high water content

Low power consumption

No minimum flow rate and boiler circuit pump due to high water content

Color touch screen and energy cockpit

Vitotronic control unit with colour touch screen and energy cabin as standard

Vitotronic 300

With integrated cascade function for up to 8 boilers

Silent operation

Thanks to the new MatriX-Disk and optional sealed indoor operation

Functional design

In accordance with the usual high quality standards of Viessmann

Built-in LAN interface

For Internet connection and built-in WiFi for service interface

Vitocrossal 300 type CRU gas condensing unit

The latest gas condensing unit, the Vitocrossal 300, sets new standards with the MatriX-Disk disc burner and Inox-Crossal heat exchangers.

The Vitocrossal 300 gas condensing unit (type CRU) with 800 and 1000 kW has many improvements compared to its predecessor. Of particular note is the extended modulation range of up to 1:6 and significantly smaller dimensions.

This makes manoeuvring much easier, for example in retrofit projects, where the replacement of powerful boilers is often only possible to a limited extent due to lack of space.

Find out more about the Vitocrossal series

Compact size thanks to the MatriX-Disk burner

The new MatriX-Disk burner is one of the key factors in ensuring the reduced dimensions. It can be powered by E gas or LPG. The boiler can operate both in the open chimney mode and in the room sealing mode.

The Vitocrossal 300 (CRU type) uses the proven Inox-Crossal heat exchanger. In addition to their compact dimensions, the heat exchanger and burner modules can be supplied separately for even faster manoeuvring.

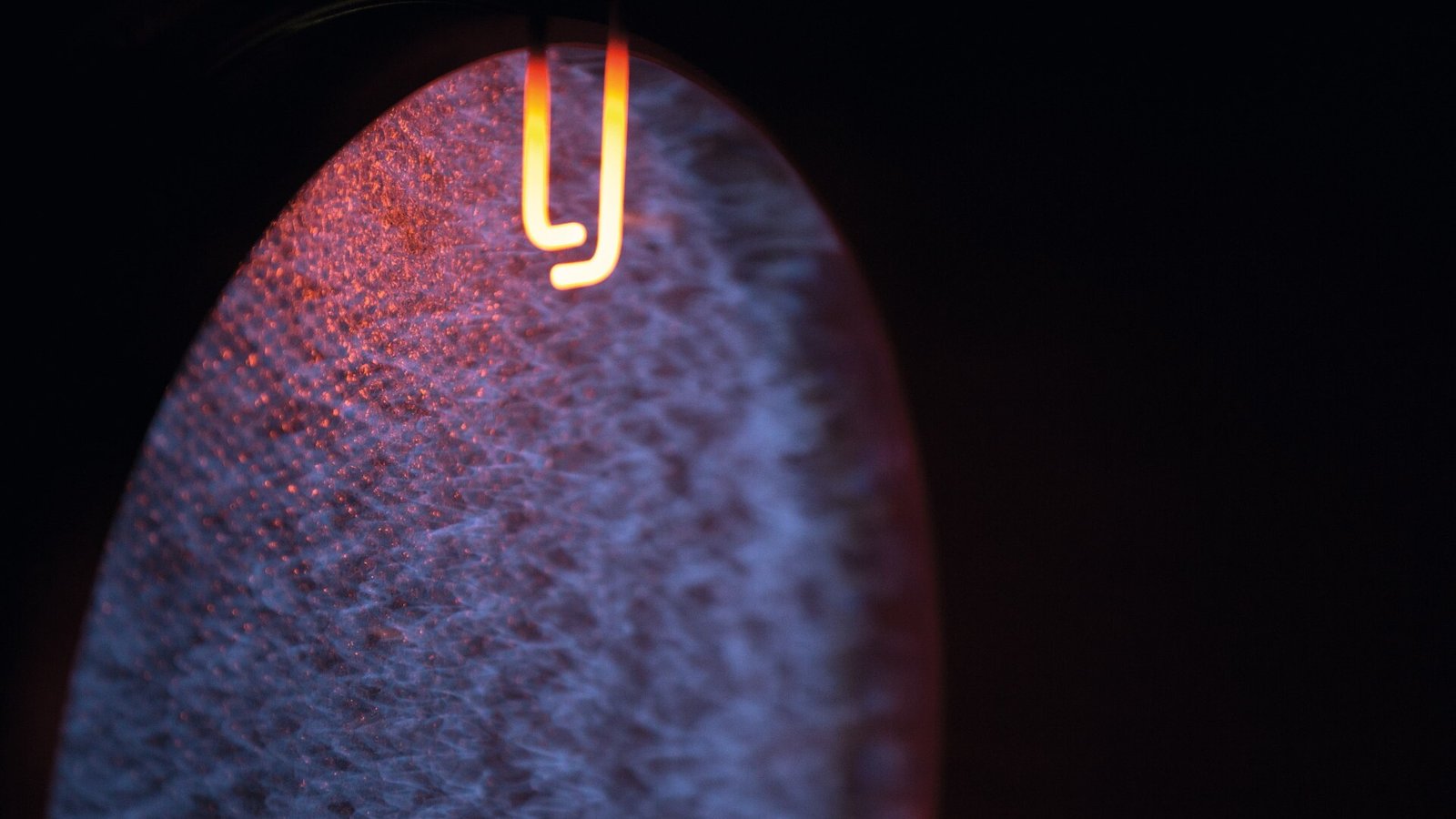

MatriX-Disk disc burner for particularly quiet, environmentally friendly operation with modulation range up to 1:6

Extremely easy to maintain

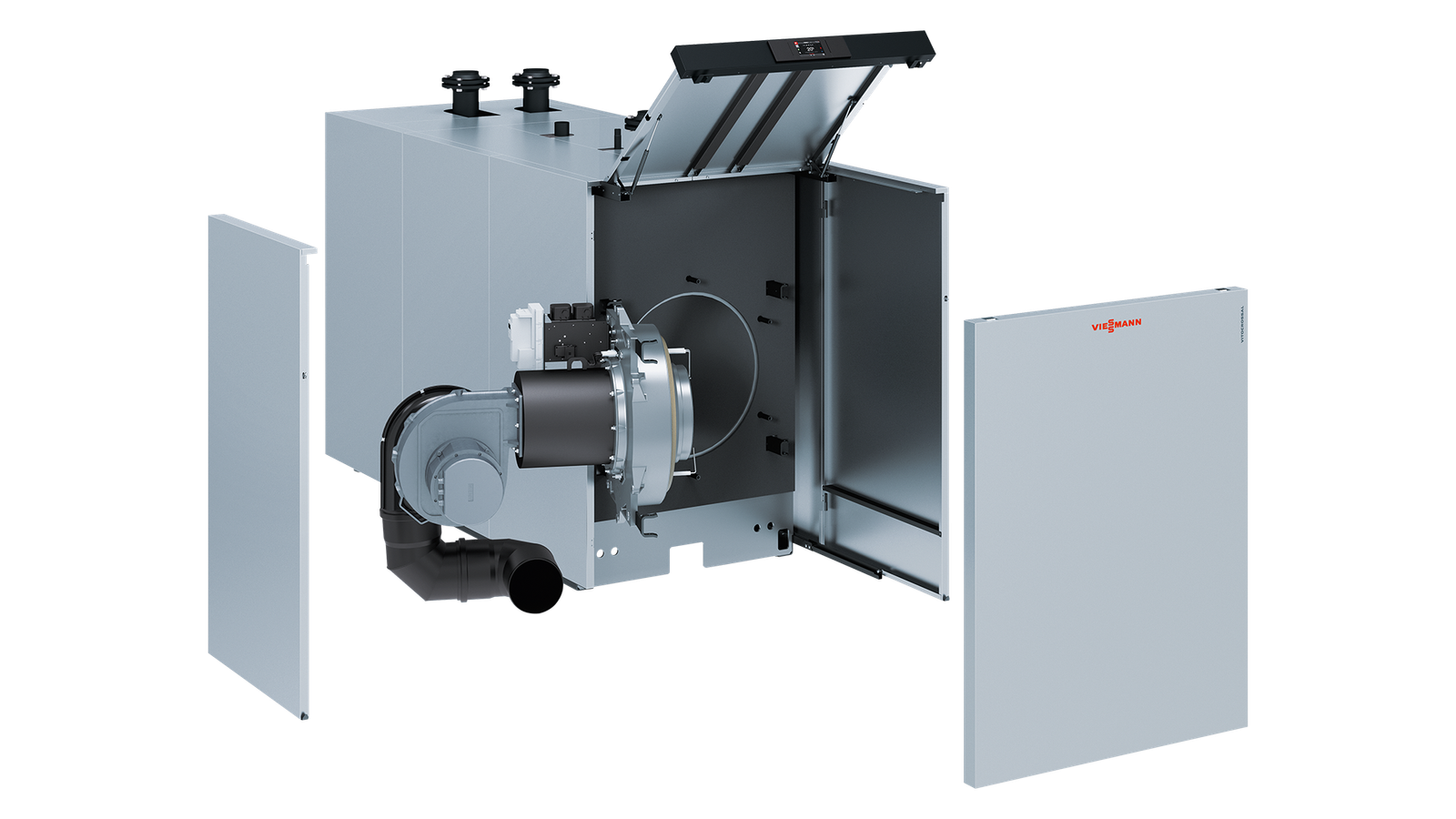

Maintenance of the Vitocrossal 300 is very simple. The front of the boiler lid can be slightly raised with a gas spring. The side panels are quick and easy to remove, providing unobstructed access to the MatriX-Disk burner, which can be simply folded aside.

Easy maintenance thanks to easy-to-open housings

Video: The new Vitocrossal 300 type CRU

The new Vitocrossal 300 type CRU: boiler unit with a capacity of 800 to 1000 kW

Intuitive operation via large colour touchscreen

The new Vitotronic control unit, integrated into the gas condensing boiler, is equipped with a large color touch screen and is simple and intuitive to use. The assistant function assists with commissioning. The control unit already has a cascade function for up to eight boilers with a total capacity of 8000 kW.

The condensing boiler can be connected directly to Vitodata using our proven Vitocom interfaces. This option opens up additional services for the contractor to ensure the smooth operation of the system.

Energy consumption can be visualized visually via Vitocom and the energy cabin.

Product details

Power in kW (modulated)	800 and 1000 kW. Type CRU 6/2018: output stages: 137.0-800.0; 171.0-1000.0 kW
Standard Seasonal Efficiency [DIN]	Up to 98% (Hs) [gross cv].
Energy efficiency class	–
Fuel	Natural gas E and liquefied gas
Applications	Gas heating in large residential buildings, as well as in public and commercial premises, in new construction and modernization projects.
Surgery	Vitotronic 300 with integrated cascading function for up to 8 boilers. Built-in LAN interface for Internet communication and built-in WiFi for service interface.
Hot water heating	Additional DHW cylinder(s) required for a high level of DHW convenience
Additional features	MatriX-Disk for particularly quiet and environmentally friendly operation with modulation range up to 1:6
Product cross-section
