Vitocrossal 300 type CM3C

Gas Condensing Boiler

CM3C Type, Gas Condensing Boiler

Rated heat output: 87 - 311 kW
Standard seasonal efficiency [according to DIN]: up to 98% (Hs) [gross cv].
High operational reliability and long service life
Self-cleaning effect

Your local Viessmann sales partner will provide you with individual advice

Gas Condensing Boiler

87 - 311 kW

Standard Seasonal Efficiency [DIN]

Up to 98% (Hs) [gross cv].

Self-cleaning effect

Thanks to the smooth stainless steel surface

High operational reliability and long service life

Thanks to the corrosion-resistant Inox-Crossal stainless steel heat exchanger

High-efficiency heat transfer

And high condensing rate

Clean combustion

Due to the low load of the combustion chamber and the co-flow design of the chamber

MatriX Cylinder Burner

Particularly quiet and environmentally friendly operation with modulation range up to 1:5

Working with an open chimney and a sealed room

Selectable as needed

All hydraulic connections can be made from the top

For easy access

Color Touch Screen

Easy-to-operate Vitotronic control unit with colour touch screen

Built-in LAN interface

For Internet connection and built-in WiFi for service interface

Vitocrossal 300 Gas Condensing Unit Type CM3C

The Vitocrossal 300 gas condensing boiler (type CM3C) with a capacity of 87 to 311 kW sets a new bar for modular boilers. The tried-and-tested MatriX cylinder burner allows you to operate on gases of types E, L and LL and from 186 kW on liquefied gas, as well as modulating the power up to 20 percent.

Find out more about the Vitocrossal series

Extremely easy to maintain

Maintenance of the Vitocrossal 300 is very simple. The gas spring makes it easy to open the front of the boiler lid. The side panels can be pushed back for easy access to the MatriX cylindrical burner.

Easy maintenance thanks to easy-to-open housings

Advanced condensing technology

The Inox-Crossal stainless steel heat exchanger has been designed to make the best use of condensing technology. This smooth stainless steel heat exchanger allows the condensate produced during the condensation process to simply flow down. This creates a permanent self-cleaning effect that maximizes the benefits of condensing technology, thereby extending service life and reducing the need for maintenance.

Reliable burner with a long service life

Developed and manufactured in-house, the cylindrical MatriX burners and the MatriX radiant burners are characterised by a long service life thanks to the MatriX gauze.

Built-in cascade function for up to eight devices

The Vitocrossal 300 is the ideal boiler for apartment buildings and commercial enterprises. A cascade function for up to eight units is possible and is already integrated into the control unit. This means that a cascade consisting of 8 x 142 kW provides a total power of 1136 kW. For multi-boiler systems with two units, Viessmann supplies prefabricated system piping and flue gas manifolds made of stainless steel.

The heating centre uses tried and tested components of Viessmann condensing technology, such as the Inox-Crossal heat exchanger and the cylindrical MatriX burner or the Matrix radiant burner. The boiler can operate both in the open chimney mode and in the room sealing mode.

Vitotronic 200 – integrated control unit for modular boilers

The user-friendly Vitotronic control unit with a large colour touch screen enables fast commissioning via the assistant function.

Built-in Internet interface

The boiler can be connected directly to the internet for remote monitoring via the built-in LAN interface. The Vitosoft 300 service tool communicates directly via WiFi. The energy consumption can be clearly seen in the power cabin of the control unit.

Product details

Power in kW (modulated)	87 – 311 kW. Type CM3C 8/2017: output stages: 29.0-87.0; 38,0-115,0; 47,0-142,0; 37,0-186,0; 62,0-246,0; 62.0-311.0 kW.
Standard Seasonal Efficiency [DIN]	Up to 98% (Hs) [gross cv].
Energy efficiency class	–
Fuel	Natural gas E, L, LL; LPG from 186 kW
Applications	Gas heating in apartment buildings, as well as in public and commercial premises, in new construction and modernization projects.
Surgery	Easy-to-operate Vitotronic control unit with colour touchscreen. Built-in LAN interface for Internet communication and built-in WiFi for service interface.
Hot water heating	Additional DHW cylinder(s) required for a high level of DHW convenience
Additional features	MatriX cylinder burner with modulation range up to 1:5

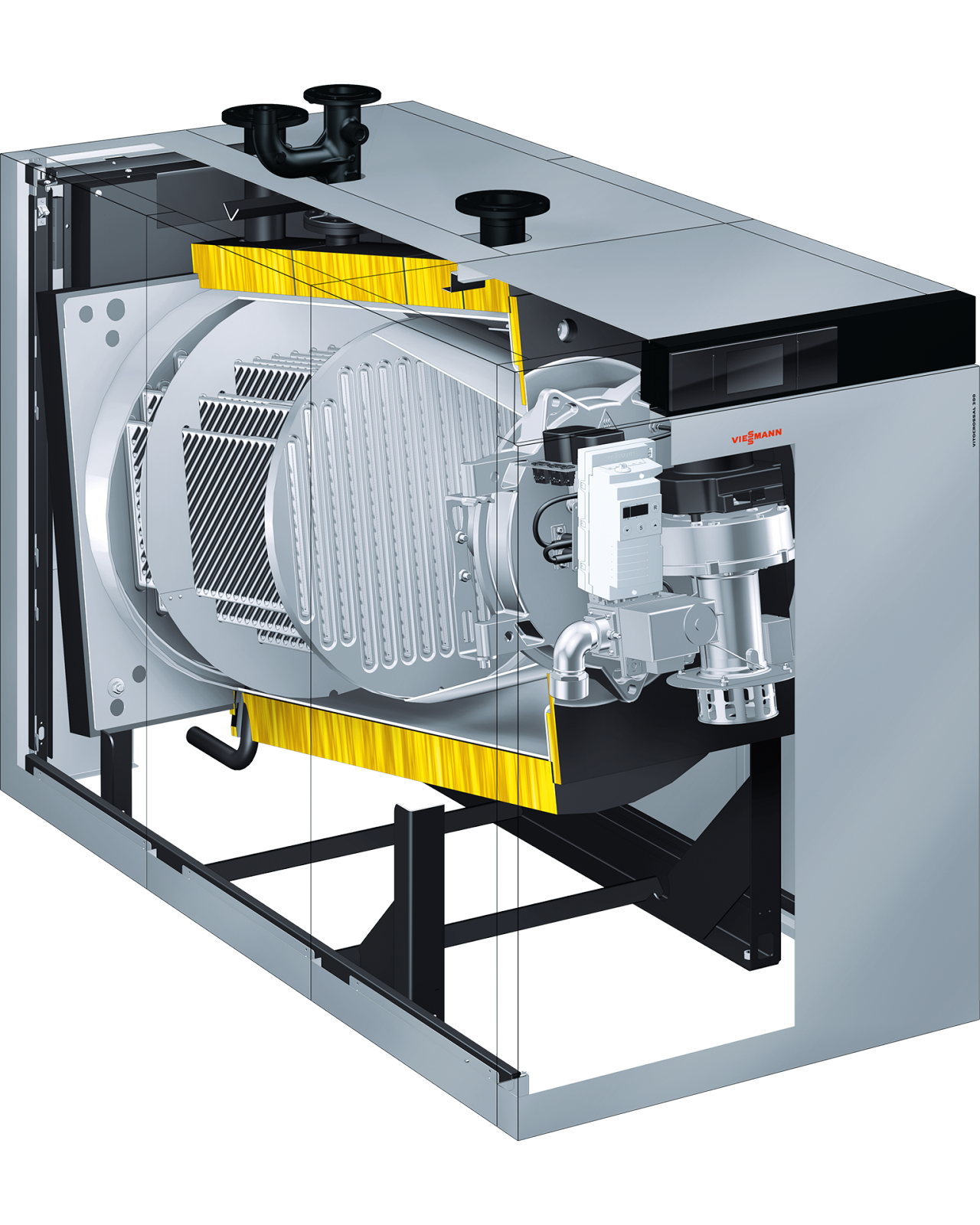

Product cross-section
