Vitocrossal 200 type CIB
Gas Condensing Boiler
The CIB type gas condensing boiler is a particularly cost-effective solution for both residential and commercial enterprises. It can already run on natural gas containing 20 percent hydrogen. This means that the Vitocrossal 200 is ideally prepared for future heating applications.
-
Rated heat output: 80 - 318 kW
-
MatriX Modulating Cylindrical Burner
-
H₂ 20 % complete
-
Also supplied assembled
Prefabricated unit or individual components
The boiler is supplied as a pre-wired, pre-assembled unit or as individual components
High operational reliability and long service life
Thanks to corrosion-resistant Inox-Crossal stainless steel heat exchangers

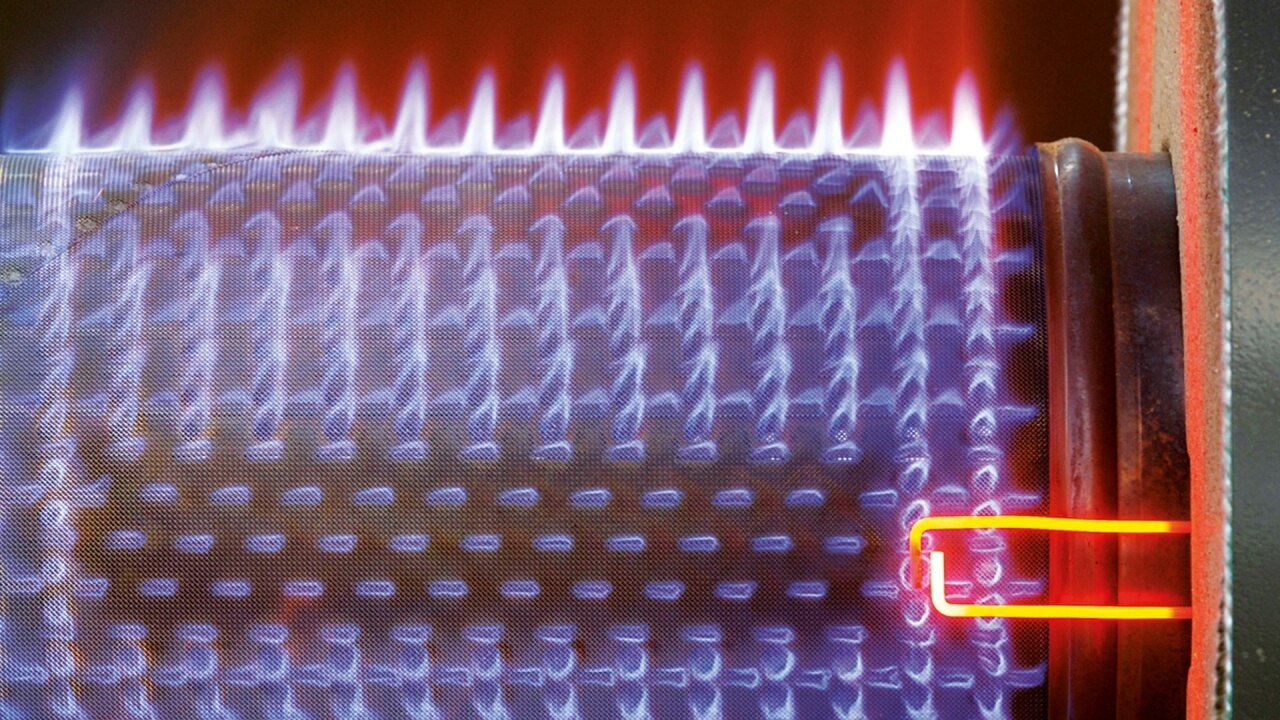

MatriX Modulating Cylindrical Burner
Long service life thanks to MatriX stainless steel mesh resistant to high temperature loads
Consistently high efficiency
Even with fluctuating gas quality thanks to the Lambda Pro Control combustion controller
Vitotronic control unit
Easy-to-operate Vitotronic control unit with text and graphic display
Compact and space-saving
Built-in casters and well-fitted packaging make it an ideal solution in cases where access to the boiler room is difficult
Vitocontrol control panel
Available on request
Natural gas with 20% hydrogen content
Ready to run on natural gas with 20% hydrogen content
Vitocrossal 200 type CIB
The Vitocrossal 200 (type CIB) is a compact gas condensing unit for universal use with a capacity of 80 to 318 kW; it is also available as a two-boiler system in a single housing with a capacity of up to 636 kW. The excellent price/performance ratio makes this unit a particularly cost-effective solution for both residential and commercial applications.
It is equipped with advanced Inox-Crossal heat exchangers with a robust MatriX cylindrical burner. A modulation range of up to 1:5 combined with a high water content ensures long burner operation and low energy consumption.
Complete and compact
The width of the Vitocrossal 200 without a body is only 680 millimeters, making it ideal for retrofit projects. This is because when replacing older systems in particular, the room for manoeuvring is often limited.
The heat generator can be ordered as an assembly or with individual components supplied separately. As a complete unit, it is pre-wired, installed and factory tested. This significantly reduces the time and effort of on-site installation before commissioning. Since the boiler is equipped with rollers and the pallet is equipped with a ramp, no lifting tools are required to maneuver on the ground.
Equipped for the future
A gas condenser is designed for a higher hydrogen content in the fuel gas. The Vitocrossal 200 type CIB can already run on natural gas with a 20 percent hydrogen content. A simple and effective way to implement life-saving decarbonization measures to help combat climate change.
The technology that allows the use of mixtures of natural gas and hydrogen for heating buildings is already available and is available on the market in many thousands of cases. Choosing this advanced condensing boiler is a great way to prepare for the future.
Features of the Vitocrossal 200 type CIB
Lambda Pro Control’s integrated combustion controller automatically matches the burner to the type of natural gas (E, LL) and ensures consistently high and efficient combustion quality with low emissions. Vitocrossal 200 is suitable for working with an open chimney or in a sealed room.
The heat exchangers have been designed to combine minimal dimensions with light weight. The stainless steel heat exchanger provides the ideal conditions for the use of condensing technology. The smooth stainless steel heating surface allows the condensate formed during the condensation process to simply flow down. The result is a permanent self-cleaning effect that ensures consistently high efficiency, increases service life and reduces maintenance requirements.

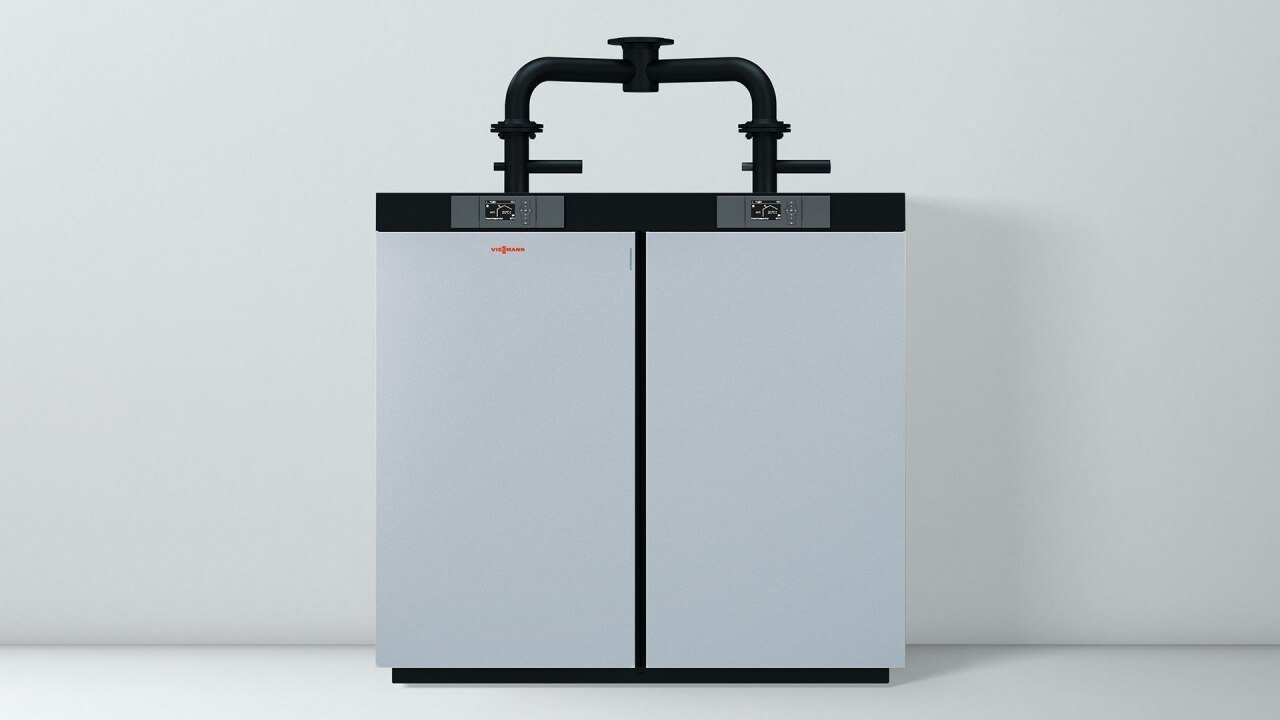

With a power range of 80 to 318 kW, the gas condensing unit is suitable for a variety of applications. These include apartment buildings, large residential buildings, public and commercial premises, both as part of a modernization project and in new construction. If a power of more than 319 kW is required, then one fixture can be quickly combined with another to form a cascade. Alternatively, the Vitocrossal CIB is also available as a twin boiler consisting of two appliances in one housing.
Video: the new Vitocrossal 200 CIB
Video: Vitocrossal KIB
Proven Vitotronic control unit
The integrated Vitotronic control unit ensures fast commissioning and easy operation. As with other Viessmann boilers, (optional) Vitocom allows you to conveniently control the boiler via the Internet via an app.
Subsidy options
UNDER CONSTRUCTION.
Product details
| Power in kW (modulated) |
|
|---|---|
| Standard Seasonal Efficiency [DIN] |
|
| Energy efficiency class |
– |
| Fuel |
Natural gas E, L and LL |
| Applications |
|
| Surgery |
|
| Hot water heating |
|
| Additional features |
|

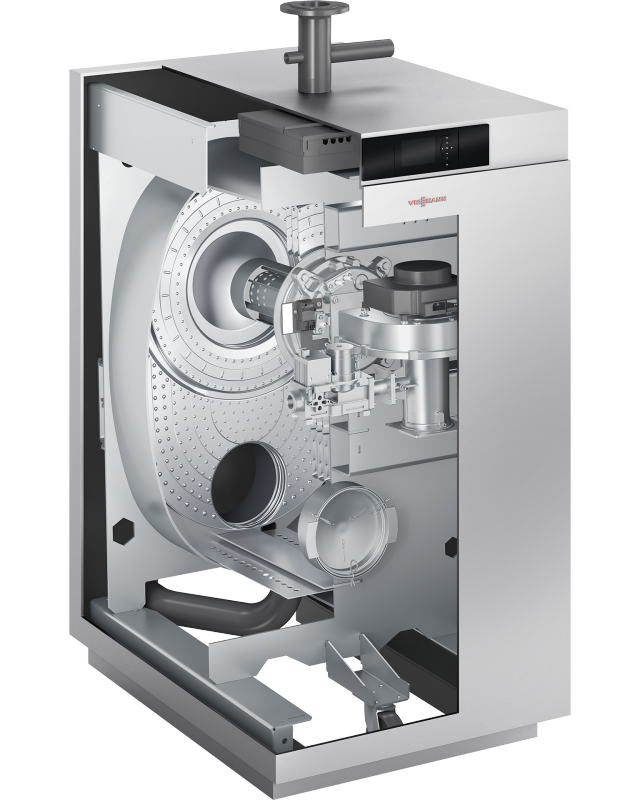

| Product cross-section |
|
+ Increased operational reliability
+ Convenient remote diagnostics
+ Complete management of fault messages
