Vitobloc 200 – Type NG 260

Find a local specialist partner for a personal consultation using the partner finder on the website.

Find a trading partner now

Electrical energy

263 kW

Thermal energy

416 kW

Silent engines

with a 3-way catalytic converter

Completely ready for connection

making installation efforts minimal

Proven technology

More than 5,000 Vitobloc 200 modules in use

High efficiency

through combined heat and power generation

High TAB achieved

High technical conditions for connection (TAB) of energy suppliers

ViNCI

A combined heat and power plant control system developed by Viessmann

Built-in LAN interface

For remote monitoring

Flexible parameterization

According to the requirements of a particular plant

Proven remote monitoring systems

And automation systems

Reducing the labor intensity of installation

There is no need for active exhaust gas aftertreatment (e.g. SCR system)

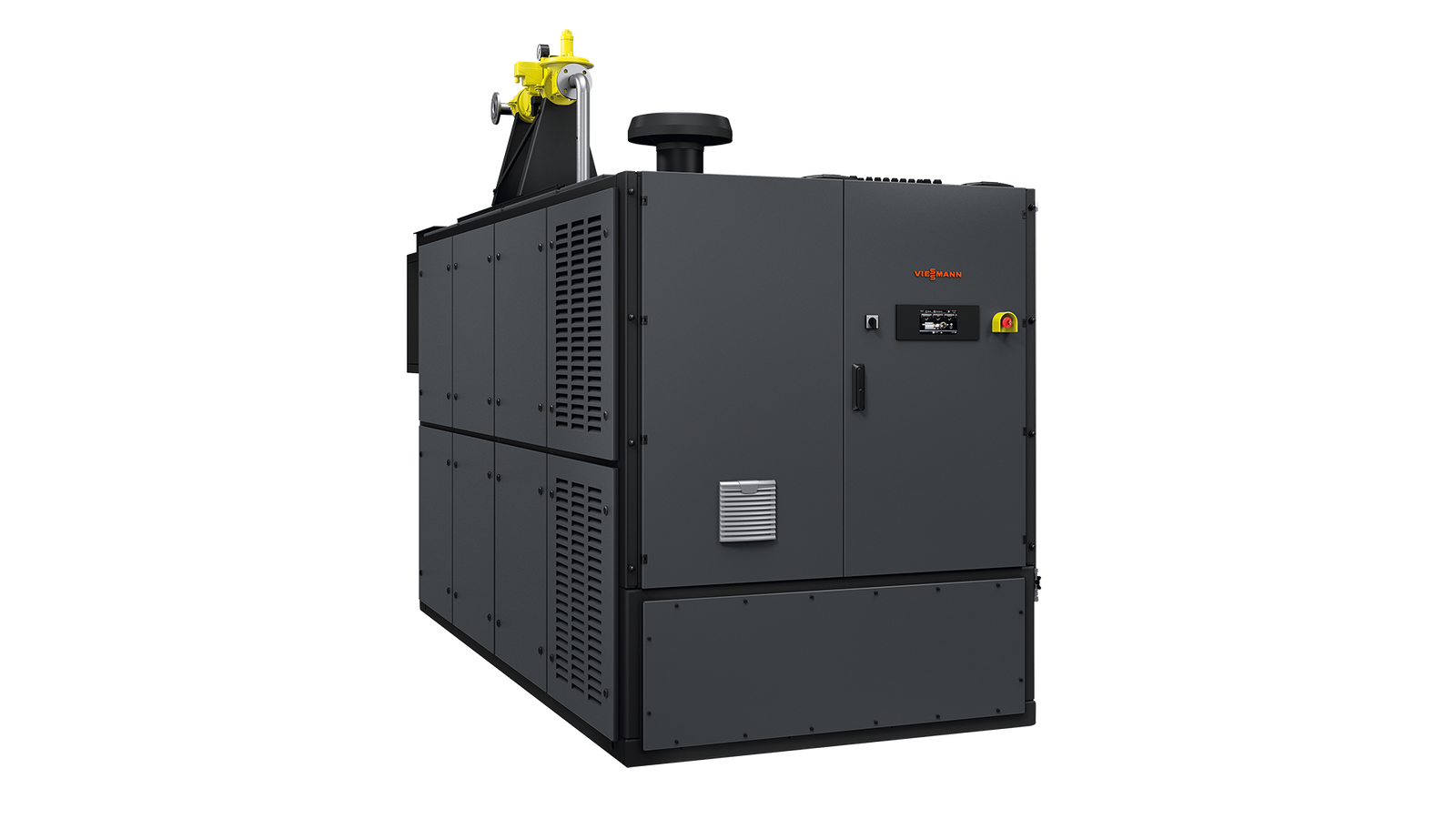

Vitobloc 200 type NG 260

Decentralized energy production using combined heat and power (CHP) is one of the most cost-effective options for resource-efficient electricity and heat generation. The new Viessmann Vitobloc 200 NG 260 cogeneration unit, with a capacity of 263 kWel and 416 kWh, is designed for a wide range of applications. These include, for example:

Hospitals, clinics and large surgical facilities
Industrial and commercial buildings
Hotels and restaurants
Nursing homes and care facilities
Swimming pools, sports halls and arenas
Solutions for neighbors
Supply to local and centralized heating systems
Large agricultural enterprises

Find out more about the Vitobloc family

Available in 3 variants

The Vitobloc 200 NG 260 is available in three variants. In addition to the standard ST variant, a high-temperature HT unit and an MT variant with maximum flue gas temperature are also available. The cogeneration unit operates with the ViNCI control unit developed by Viessmann and can be supplemented with a ViNCI buffer management system. The user benefits from a stand-alone, independent system for electricity and heat production.

Powerful engine management and an optimized cooling system ensure high operational reliability and long service intervals. An NOₓ monitoring system for data recording in accordance with 44th BimSchV, a knock monitoring system, and the Black Start Pro function are optionally available.

The Vitobloc 200 NG 260, with its timeless industrial colour design, will fit into any energy centre.

ViNCI Buffer Management (BM)

The ViNCI BM is an add-on module for combined heat and power plants (CHP) with ViNCI controls. Combined with a buffer tank and a pump for unloading the tank, it creates an independent system for generating electricity and heat. The central element is the compact ViNCI BM control cabinet for space-saving wall mounting.

Hardware and software made in Germany

The ViNCI BM connects to the KU control unit via a CAN bus. All parameters can then be set directly on the KU display. The control unit hardware and software were developed by Viessmann. The ViNCI buffer management system and the necessary printed circuit board assembly are manufactured in Germany.

ViNCI BM optimizes the cogeneration unit’s operating time based on the “buffer level.” Extensive functions can be parameterized for optimal heating system operation:

Two sets of parameters (summer/winter)
Selection and rejection of additional heat generators
Selection and rejection of the choice of a pump for unloading a storage tank with a boost function (domestic hot water) and protection of the storage tank
Speed control of the unloading pump of the storage tank depending on the feed and return flow temperature or the temperature in the buffer storage tank
Valve control
Preparing for future functions

Product details

Fuel	Natural gas
Services	263 kWel, 416 kWh
Length/width/height (mm)	3583/1600/2000
Weight (kg)	5600
Electrical efficiency	36.5%
Thermal efficiency	57.7%
Overall efficiency overall	94.2% (Hi)
Flow temperature max.	92 °C (95 °C for HT version)
Return temperature max.	75 °C
Engine	12-cylinder Otto gas engine with 3-way catalytic converter
Option	ST Standard version HT High temperature version MT Version without exhaust gas heat exchanger
